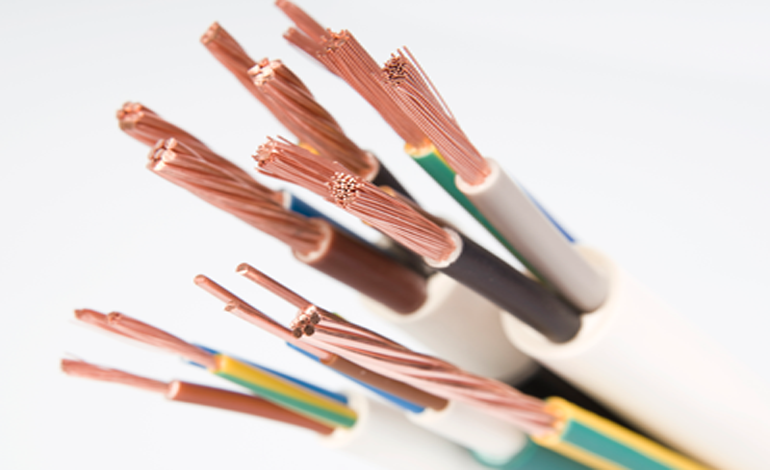

Multi Core Cables

Mahindayal Multi core Round Flexible Cables have a wide range of application for machine tools, appliances, control panels, plant & machinery, control panels, industries of every nature and Real Estate of all kind. These wires are manufactured using superior quality Copper metal and are in compliance with national and international quality standards. The sheathing is provided with a specially formulated PVC compound to facilitate not only ease in stripping but also to withstand all kinds of mechanical abrasion while in use. PVC compounds used for insulation and sheathing have a high oxygen and temperature index & these properties help inrestricting the spread of fire.

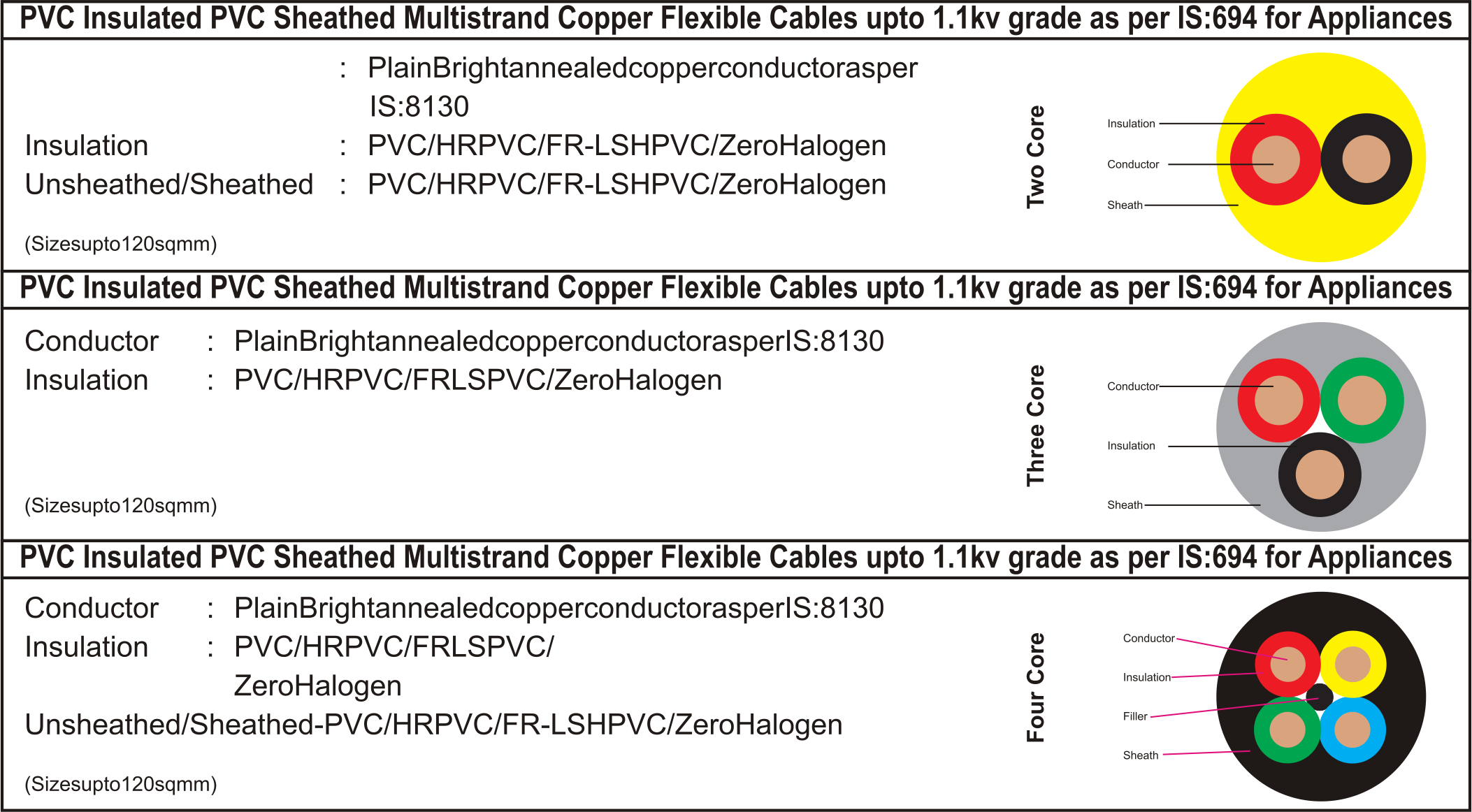

Cross Sectionl View:

Mahindayal Submersible Cables

Mahindayal PVC insulated and sheathed 3 core flat cables are used for giving electrical connection to the submersible pump motors. These are manufactured keeping in mind the severe, tough and difficult conditions in which they have to operate. The slot available in the tube well being narrow the shape of the cables has to be suited for such an application. These cables conform to and are marked IS 694: 2010.

Features

Manufactured from bright-annealed 99.97% pure bare copper conductors these cables have low conductor resistance. The inner cores are insulated with a special grade PVC compound formulated and manufactured in-house. The tough robust outer PVC jacket protects it from the oils, greases, various chemicals and abrasions, thereby giving long life and electrical safety.

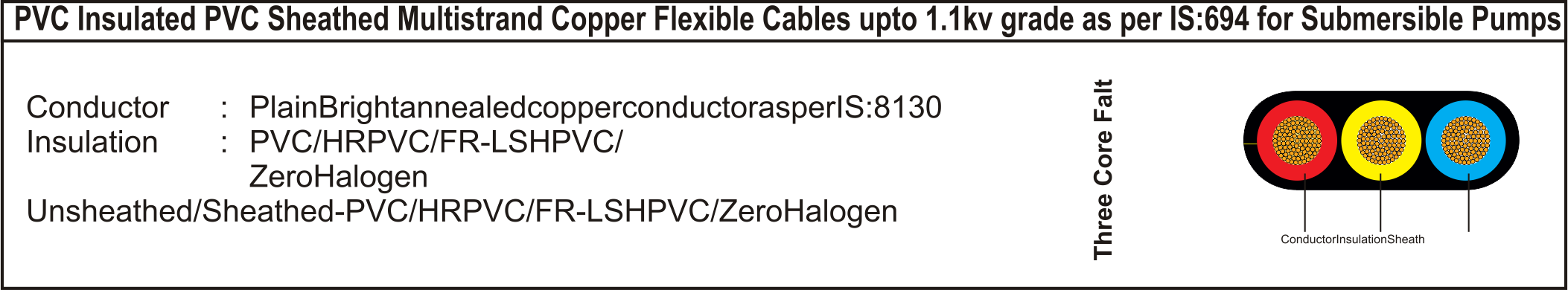

Cross Sectional View:
